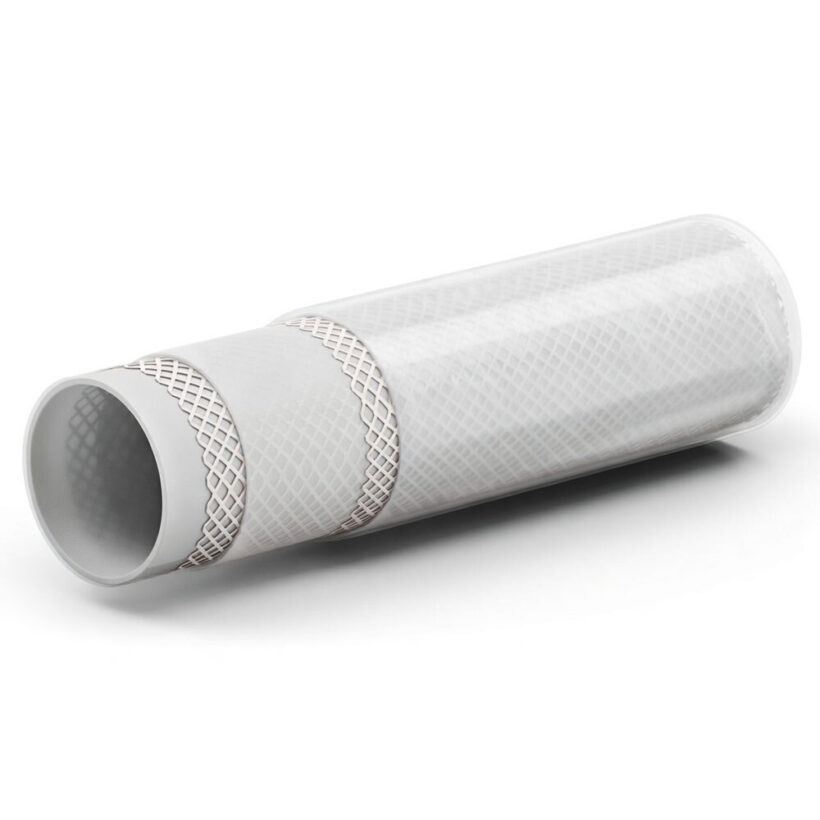

Braided Silicone Hose (PharmaSil™)
Description
As your trusted sourcing partner, Tetraflex bridges the gap between the manufacturer and the end user – sourcing PharmaSil™ braided silicone hose directly and supplying it in bulk MOQs.
PharmaSil™ is a smoothbore, high-purity, platinum-cured extruded silicone hose reinforced with open-mesh polyester braid. It meets USP Class VI, EU Pharmacopoeia, FDA 21 CFR 177.2600 and numerous other standards.
The braid delivers increased pressure capability, extreme flexibility and full suitability for positive-pressure pharmaceutical applications. It is also ideal for medical, biotechnology, life sciences and food & beverage markets.
Manufactured in a dedicated FED STD 209E Class 10,000 cleanroom facility in Europe under ISO 9001:2008, with continuous Class 7 monitoring and zero cross-contamination (platinum-cured silicone only).
Working pressures up to: 10 bar
Temp range: -60℃ to 200℃
Key Features
- Biopharmaceutical grade
- Excellent bend radius
- Smooth seamless liner and cover
- Autoclavable and sterilisable
- Tasteless and odourless
- Platinum cured extruded liner
- Compatible with SIP and CIP regimes
- High transparency, no yellowing
Applications
Suitable for a variety of applications as it can resist temperature extremes, radiation, compression sets, weathering, chemical attack, corona and ozone as well as being odourless and tasteless.
Construction
Liner
High purity platinum cured extruded silicone smoothbore liner
Reinforcement
One layer of polyester braid
Cover
High purity platinum cured silicone (Transparent)
Connections
Idea for use with: SHAWLOK® hygienic fittings which includes Triclamp, DIN 11851, RJT, SMS, IDF fully hygienic end connections as well as BSP.
